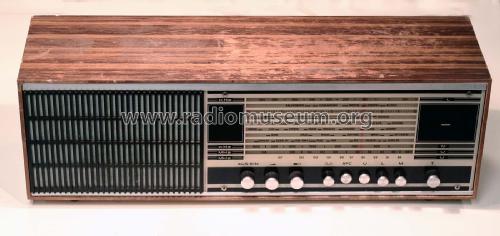

Transmiranda 6290
Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
- Country
- Germany
- Manufacturer / Brand
- Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
- Year
- 1968
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 127674
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Transmiranda 6290 - Stern-Radio Sonneberg, VEB,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 500 x 140 x 156 mm / 19.7 x 5.5 x 6.1 inch
- Notes
- UKW-Bereich bis 108 MHz, Exportgerät. Für Mittel- und Langwelle eingebaute Ferritantenne, für UKW Gehäuseantenne eingebaut. Eisenlose Endstufe mit 2x GD160B.
- Net weight (2.2 lb = 1 kg)
- 4 kg / 8 lb 13 oz (8.811 lb)
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
