• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 16719

• • alternative name: Fernsehgerätewerk Staßfurt

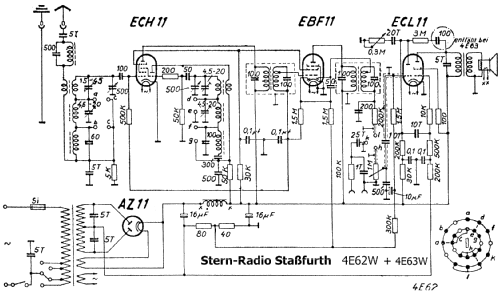

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH11 EBF11 ECL11 AZ11

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

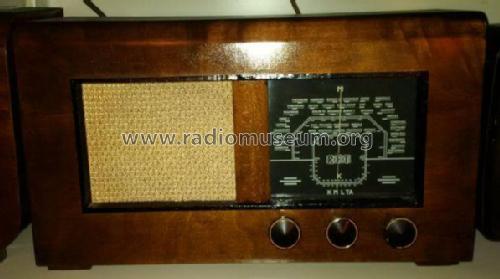

• Model: 4E62WK - Stern-Radio Staßfurt, VEB, RFT

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch
