• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77540

• • alternative name: Fernsehgerätewerk Staßfurt

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EC92 EC92 ECH81 EF89 EM80 EABC80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 468/6700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

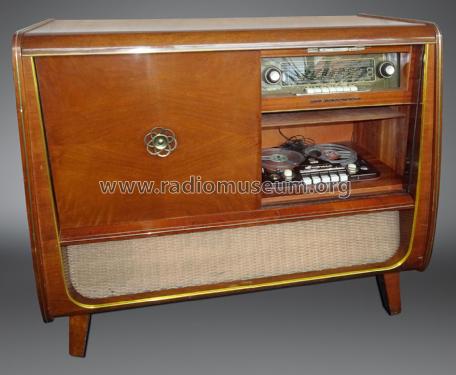

• Model: Caruso I M 8E157I - Stern-Radio Staßfurt, VEB, RFT

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1105 x 935 x 485 mm / 43.5 x 36.8 x 19.1 inch

• Notes
• Musikschrank mit Radioteil Onyx und Magnetbandgerät BG20 Smaragd. Abgerundete, konventionelle Gehäuseform, sonst wie Caruso II
  Als Caruso I auch mit 4-tour-Plattenspieler, Kristallabtaster, umschaltbar für Normal- und Mikrorillen (1350,00 Mark).

• Net weight (2.2 lb = 1 kg)
• 57 kg / 125 lb 8.8 oz (125.551 lb)

• Price in first year of sale
• 2,130.00 Mark

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
