Donja 101

• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

• Year
• 1964 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 72870

• • alternative name: Fernsehgerätewerk Staßfurt

• Picture

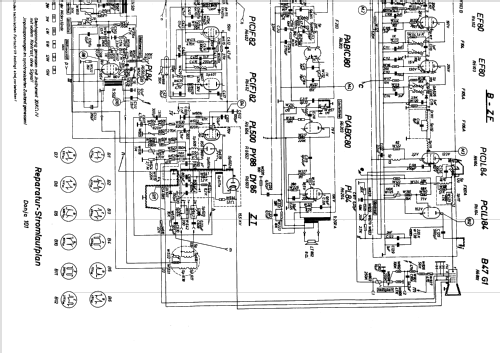

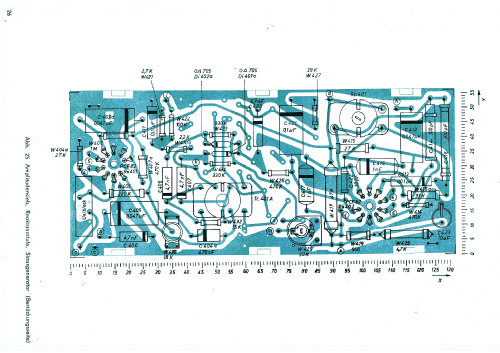

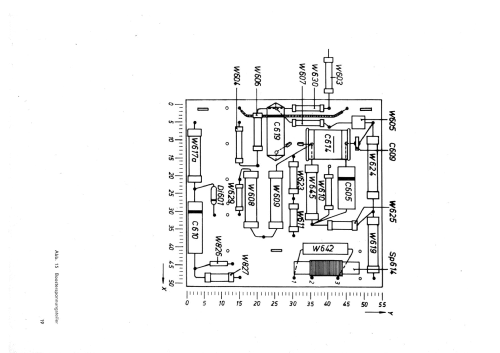

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• PC88 PCF82 EF183 EF80 EF80 PCL84 EF80 PABC80 PL84 ECC82 PL84 PCF82 PCF82 PL500 PY88 DY86 B47G1

• Number of Transistors

• Semiconductors
• Selengleichrichter

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Donja 101 - Stern-Radio Staßfurt, VEB, RFT

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 560 x 430 x 370 mm / 22 x 16.9 x 14.6 inch

• Notes

• Der Empfänger Donja 101 empfängt VHF Kanal 2 bis 12 mit einem durchstimmbaren Kanalwähler.

• Net weight (2.2 lb = 1 kg)
• 30 kg / 66 lb 1.3 oz (66.079 lb)

• External source of data
• TV-Schaltungssammlung Werner Zimmermann

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Service-DVD Funkverlag B. Hein

• Literature/Schematics (1)

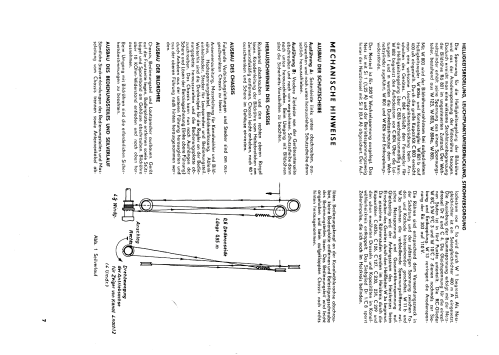

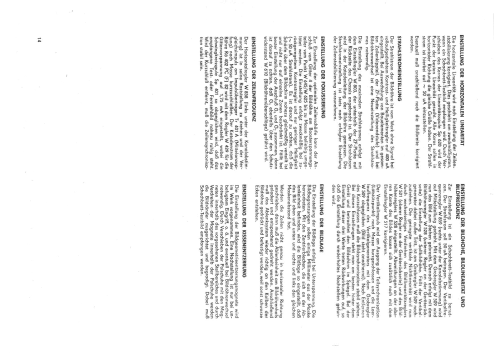

• -- Original-techn. papers. (RFT-Service-Information 1/1964)

• Author
• Model page created by Andreas Hahn. See "Data change" for further contributors.
