- Country
- Germany
- Manufacturer / Brand
- Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
- Year
- 1967/1968
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 89926
-
- alternative name: Fernsehgerätewerk Staßfurt

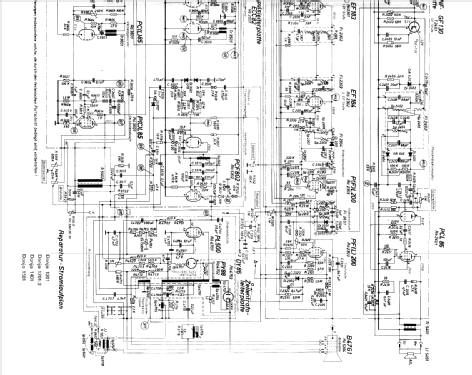

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Number of Transistors
- 1
- Semiconductors
- GF130
- Main principle
- Superheterodyne (common)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Donja 1401 - Stern-Radio Staßfurt, VEB, RFT
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 560 x 430 x 360 mm / 22 x 16.9 x 14.2 inch
- Notes
- Wegen Implosionsgefahr befindet sich eine zusätzliche Glasscheibe vor der Bildröhre.
- Net weight (2.2 lb = 1 kg)
- 27 kg / 59 lb 7.5 oz (59.471 lb)
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Andreas Hahn. See "Data change" for further contributors.
