• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

• Year
• 1966/1967

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 90282

• • alternative name: Fernsehgerätewerk Staßfurt

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• PCC88 PCF82 EF183 EF80 EF80 PCL84 EF80 PABC80 PL84 PCF82 PC92 PCL85 PCF82 PL500 PY88 DY86 B47G1

• Number of Transistors
• 2

• Semiconductors
• GC112 GC112

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

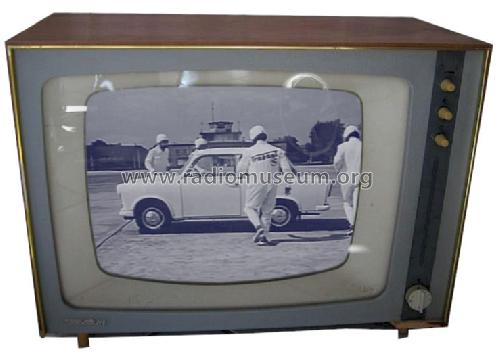

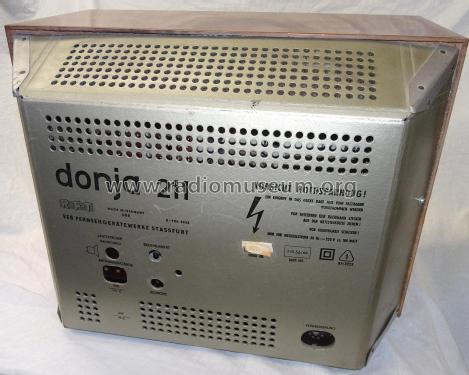

• Model: Donja 211 - Stern-Radio Staßfurt, VEB, RFT

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 570 x 440 x 370 mm / 22.4 x 17.3 x 14.6 inch

• Notes

• VHF-Bereich I/III, UHF vorgesehen.

• Price in first year of sale
• 1,700.00 M

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Andreas Hahn. See "Data change" for further contributors.
