- Country
- Germany
- Manufacturer / Brand
- Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
- Year
- 1969 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 317539
-
- alternative name: Fernsehgerätewerk Staßfurt
- Number of Tubes
- 13
- Number of Transistors
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

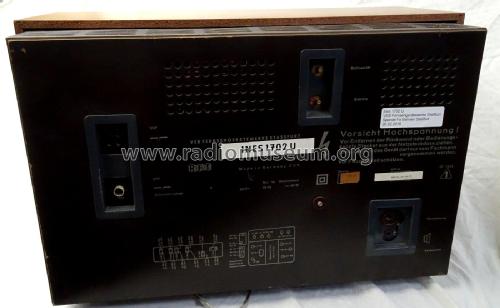

- Model: Ines 1702U - Stern-Radio Staßfurt, VEB, RFT
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 640 x 430 x 310 mm / 25.2 x 16.9 x 12.2 inch
- Notes
-
Senkrechtes Bedienteil
VHF-Trommelkanalwähler K 3-12
UHF 21-39 durchstimmbar, transistorisiert AF139 GF128 AF139
DF transistorisiert GF139
Zeilentrafo steckbar, Bild- und Zeilenfangautomatik
