• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

• Year
• 1970/1971

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 96624

• • alternative name: Fernsehgerätewerk Staßfurt

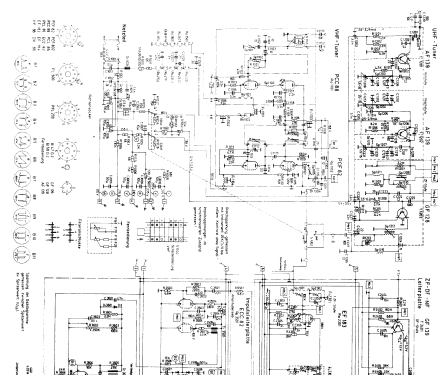

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• PCC88 PCF82 EF183 EF184 PFL200 PCL86 PCL85 ECC82 PCF802 PL500 PY88 DY86 B47G2

• Number of Transistors
• 4

• Semiconductors
• AF139 AF139 GF128 GF139

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Ines 1802-U - Stern-Radio Staßfurt, VEB, RFT

• Shape
• Tablemodel, low profile (big size).

• Notes

• Ines 1802-U, wie Ines 1802 aber mit einem eingebautem UHF- Tuner.

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• Service-DVD Funkverlag B. Hein

• Author
• Model page created by Andreas Hahn. See "Data change" for further contributors.
