• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

• Year
• 1969/1970

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 114444

• • alternative name: Fernsehgerätewerk Staßfurt

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• PC88 PCF82 EF183 EF184 PFL200 ECC82 PCL85 PCL86 PCF802 PL500 PY88 DY86 B47G2

• Number of Transistors
• 4

• Semiconductors
• GF145 GF145 GF128 GF139

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

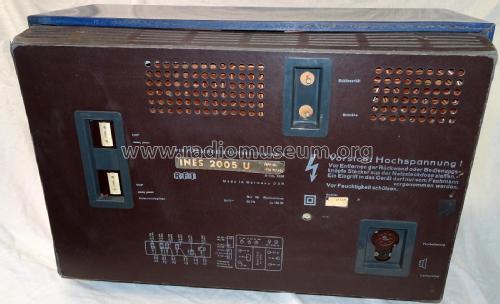

• Model: Ines 2005U - Stern-Radio Staßfurt, VEB, RFT

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 640 x 434 x 340 mm / 25.2 x 17.1 x 13.4 inch

• Notes

• Der Empfänger Ines 2005U hat einen Gitterbasis- Tuner zum Empfang der Kanäle 2 - 12 und einen UHF- Tuner für Kanal 21 - 39, einen steckbaren Zeilentrafo, sowie.eine Bild- und Zeilenfangautomatik. Der UHF- Tuner und der DF- Verstärker sind transistorisiert aufgebaut.

• Net weight (2.2 lb = 1 kg)
• 30 kg / 66 lb 1.3 oz (66.079 lb)

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• Service-DVD Funkverlag B. Hein

• Author
• Model page created by Andreas Hahn. See "Data change" for further contributors.
