• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

• Year
• 1969–1971 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 114439

• • alternative name: Fernsehgerätewerk Staßfurt

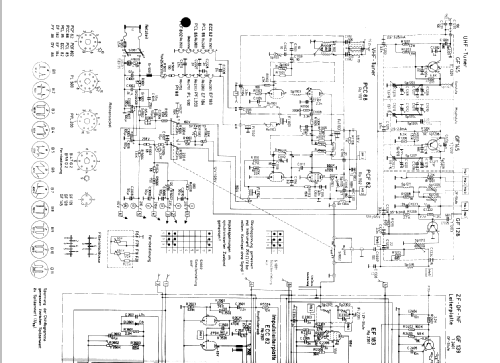

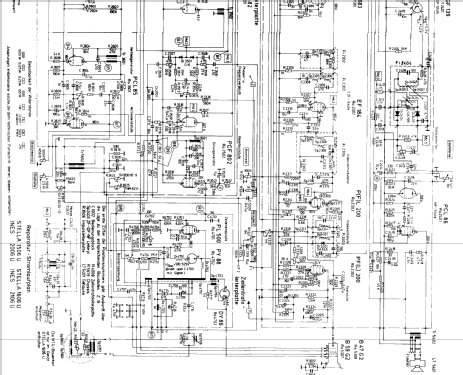

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• PCC88 PCF82 EF183 EF184 PFL200 PCL86 ECC82 PCL85 PCF802 PL500 PY88 DY86 B47G2

• Number of Transistors
• 4

• Semiconductors
• GF145 GF145 GF128 GF139

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Ines 2006U - Stern-Radio Staßfurt, VEB, RFT

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 640 x 434 x 340 mm / 25.2 x 17.1 x 13.4 inch

• Notes

• VHF-Trommelkanalwähler K3-12 + UHF 21-39 durchstimmbar, Zeilentrafo steckbar, Bild- und Zeilenfangautomatik, UHF und DF mit Transistoren.

• Mentioned in
• -- Original prospect or advert (http://www.rft-verein-stassfurt.de/)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Andreas Hahn. See "Data change" for further contributors.
