• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

• Year
• 1984

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 128357

• • alternative name: Fernsehgerätewerk Staßfurt

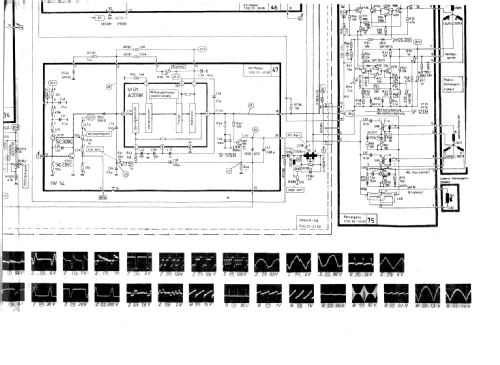

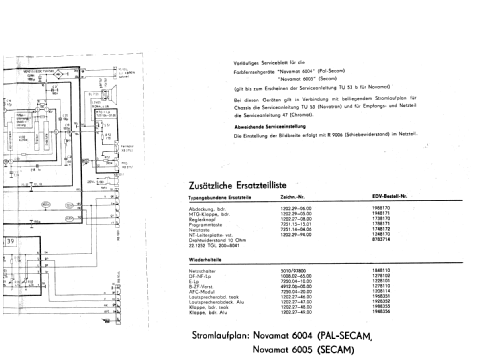

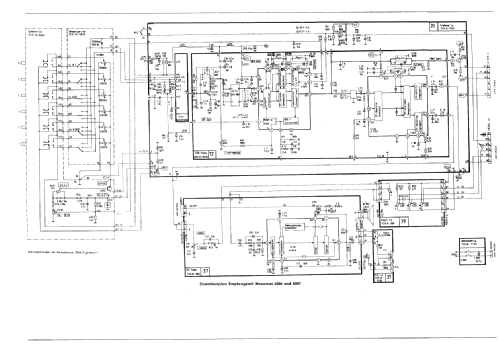

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 61ЛК3Ц

• Number of Transistors
• 50

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

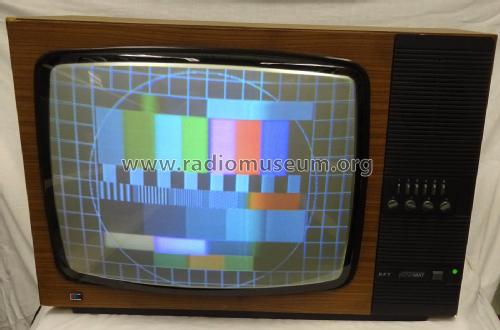

• Model: Novamat 6006 - Stern-Radio Staßfurt, VEB, RFT

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 750 x 520 x 520 mm / 29.5 x 20.5 x 20.5 inch

• Notes

• 61cm PAL-SECAM TV mit elektronischem CCIR B/G VHF-/UHF Band IV & V Tuner. 6 Programmspeicherplätze, frontseitiger Tonband- und Kopfhöreranschluß, vereinfachte Nachrüstung für den Anschluß von Videorecordern mit HF-Ausgang, Verwendung eines Schaltnetzteiles.

  Gehäusevarianten: -softline- (4200 Mark), -eckig- (4180 Mark).

• Net weight (2.2 lb = 1 kg)
• 46 kg / 101 lb 5.1 oz (101.322 lb)

• Price in first year of sale
• 4,200.00 Mark

• Source of data
• -- Original-techn. papers.

• Mentioned in
• Sortimentskatalog Elektroakustik (DDR, 1984)

• Literature/Schematics (1)
• Service- DVD vom Funkverlag B. Hein

• Author
• Model page created by a member from A. See "Data change" for further contributors.
