• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

• Year
• 1949 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 125951

• • alternative name: Fernsehgerätewerk Staßfurt

• Number of Tubes
• 4

• Valves / Tubes
• ECH11 EBF11 ECL11 AZ11

• Main principle
• Superheterodyne (common); none

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch

• Power out
• 4 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

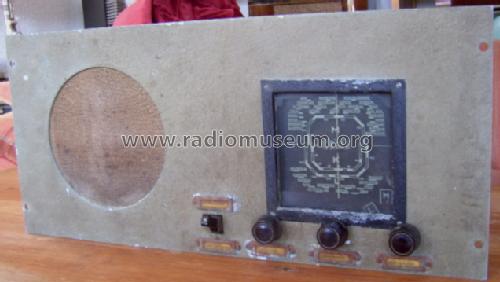

• Model: Radio - Einschub - Stern-Radio Staßfurt, VEB, RFT

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 520 x 235 x 275 mm / 20.5 x 9.3 x 10.8 inch

• Notes
• Radioeinschub für Lautsprecheranlagen, Anschlüsse über Schraubklemmen, eingebauter LS abschaltbar, Chassis wie I763WK (Schulsuper) und ähnlich 4E62W (andere Skala).

• Source of data
• - - Data from my own collection

• Author
• Model page created by Stefan Guba. See "Data change" for further contributors.
