• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

• Year
• 1963/1964

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 72788

• • alternative name: Fernsehgerätewerk Staßfurt

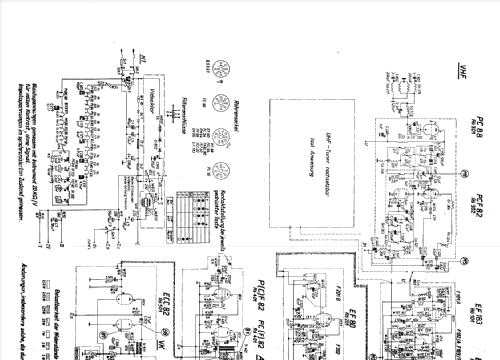

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• PC88 PCF82 EF183 EF80 PM84 PCL84 PABC80 PL84 ECC82 PL36 PY88 DY86 B53G1

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Sibylle II 53ETG104 - Stern-Radio Staßfurt, VEB, RFT

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 690 x 490 x 360 inch / 17526 x 12446 x 9144 mm

• Notes

• Empfangsbereich nur VHF Band I und III. Röhren sind nicht alle angeführt.

• Price in first year of sale
• 1,900.00 DM

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Andreas Hahn. See "Data change" for further contributors.
