- Country
- Germany
- Manufacturer / Brand
- Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
- Year
- 1949 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 147719
-
- alternative name: Fernsehgerätewerk Staßfurt
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz; 1 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

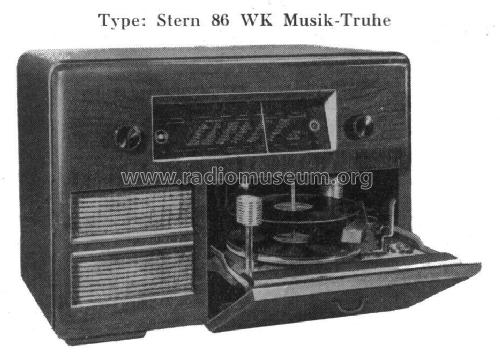

- Model: Stern 86WK - Stern-Radio Staßfurt, VEB, RFT
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 750 x 530 x 400 mm / 29.5 x 20.9 x 15.7 inch
- Notes
- Obwohl als Musiktruhe bezeichnet, ist es ein großes Tischgerät. Mit Einfach- oder Zehn-Plattenspieler.
- Net weight (2.2 lb = 1 kg)
- 33 kg / 72 lb 11 oz (72.687 lb)
- Source of data

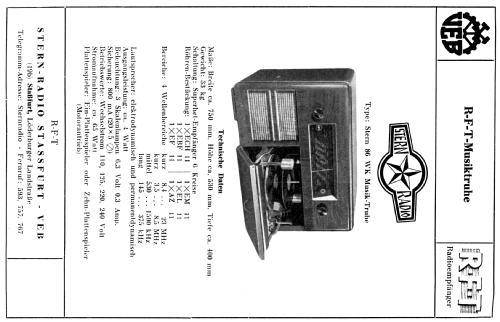

- -- Original-techn. papers.
- Author
- Model page created by Jürgen Recke. See "Data change" for further contributors.
