• Country
• United States of America (USA)

• Manufacturer / Brand
• Stewart (Lynn Stewart Co.); Chicago, IL

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 275421

• Number of Tubes
• 6

• Valves / Tubes
• 17EW8 12BE6 12BA6 12BA6 12AV6 50C5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

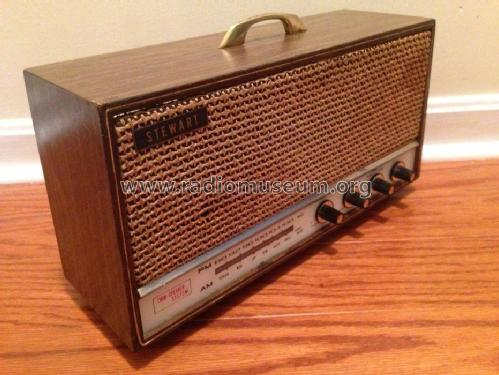

• Model: FM/AM Twin Speaker System - Stewart Lynn Stewart Co.;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 15.5 x 8.5 x 6 inch / 394 x 216 x 152 mm

• Notes

• Model number unknown  No chassis number noted

• Author
• Model page created by John Backscheider. See "Data change" for further contributors.
