Manhattan Stereo Phonograph 5MD

Stewart Electrical Industries Ltd.; Christchurch

Data
Forum
Pictures
Collections

  • Year
  • 1966 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 333790

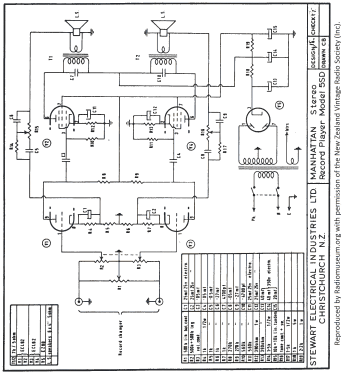

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 6 inch = 15.2 cm
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Manhattan Stereo Phonograph 5MD - Stewart Electrical Industries
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 15 x 8 x 19 inch / 381 x 203 x 483 mm
  • Notes

  • AC-powered, 3 valve stereo portable phonograph with automatic record changer.

    4 watts output per channel.

    Record Changer: Garrard Autoslim.

    Advertising pamphlet states power requirement 110-60c/s.



    .

  • Net weight (2.2 lb = 1 kg)
  • 21 lb (21 lb 0 oz) / 9.534 kg

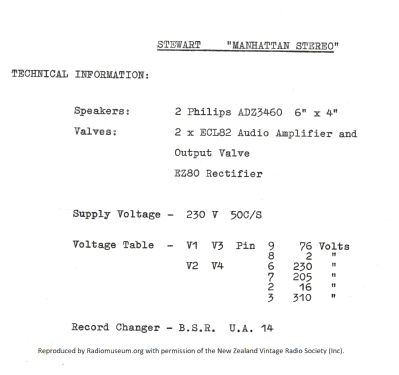

  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Gary Cowans. See "Data change" for further contributors.
