01-5H3 Ch= 01-5H
Stewart Warner Corp.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1939 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 60180
-
- Brand: Ferrodyne

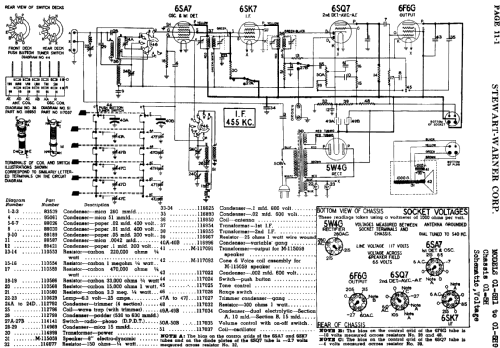

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- from Radiomuseum.org
- Model: 01-5H3 Ch= 01-5H - Stewart Warner Corp.; Chicago
- Shape
- Tablemodel with Push Buttons.
- Notes
- Model 01-5H3 uses chassis 01-5H; push button tuner.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Literature/Schematics (1)

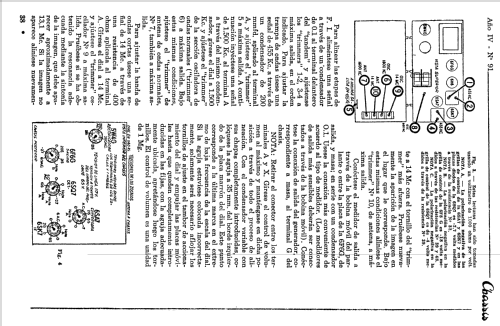

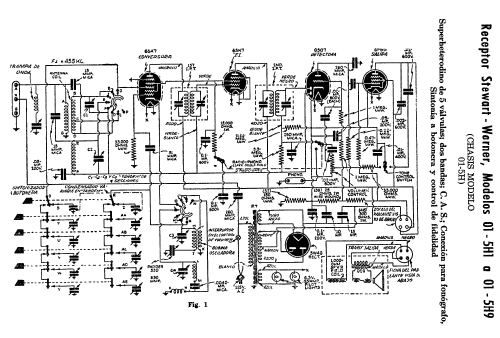

- Radio Chassis magazine nr 91 April 24 1945 (Argentina)
