• Country
• United States of America (USA)

• Manufacturer / Brand
• Stewart Warner Corp.; Chicago (IL)

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 60267

• • Brand: Ferrodyne

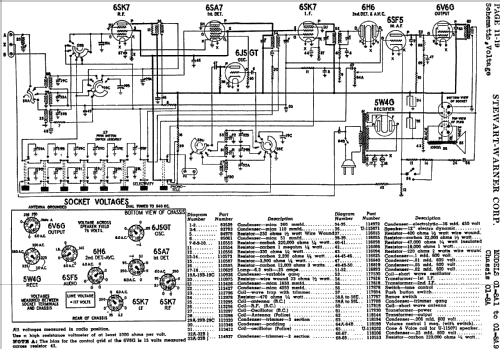

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6SK7 6SA7 6J5GT 6SK7 6H6 6SF5 6V6G 5W4G

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 01-8A7 Ch= 01-8A - Stewart Warner Corp.; Chicago

• Shape
• Console with Push Buttons.

• Notes
• Model 01-8A7 uses chassis 01-8A; push button tuner.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before
