01-8C7 Ch= 01-8C
Stewart Warner Corp.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1939 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 60281
-
- Brand: Ferrodyne

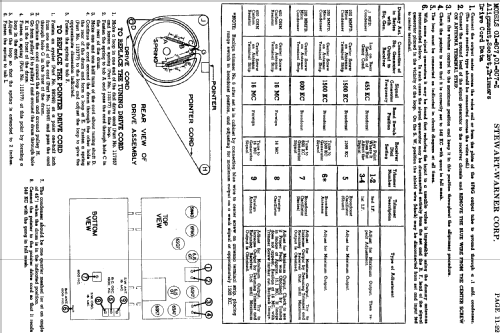

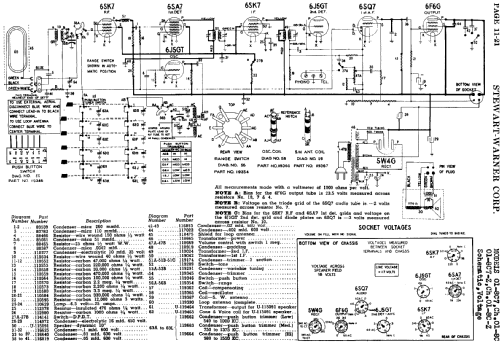

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 01-8C7 Ch= 01-8C - Stewart Warner Corp.; Chicago
- Shape
- Console with Push Buttons.
- Notes
- Model 01-8C7 uses chassis 01-8C; push button tuner; built-in loop antenna.
- External source of data
- Ernst Erb
- Source of data
- Pre-War Consoles
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
