• Country
• United States of America (USA)

• Manufacturer / Brand
• Stewart Warner Corp.; Chicago (IL)

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 60409

• • Brand: Ferrodyne

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4 inch = 10.2 cm

• Material
• Wooden case

• from Radiomuseum.org

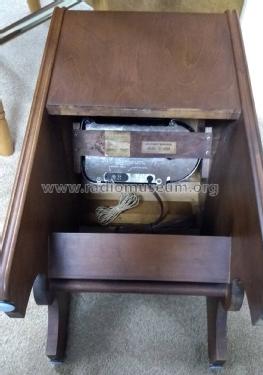

• Model: 07-516H Campus Ch= 07-51H - Stewart Warner Corp.; Chicago

• Shape
• Console: Chairside Radio.

• Dimensions (WHD)
• 12.5 x 22 x 15 inch / 318 x 559 x 381 mm

• Notes

• Model 07-516H uses chassis 07-51H; built-in antenna.

  Built-in antenna is a capacitor coupled to the AC power not a loop antenna.

  Console has a book shelf below the radio.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before
