1251 Strand Ch= R-125X
Stewart Warner Corp.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 60661
-
- Brand: Ferrodyne

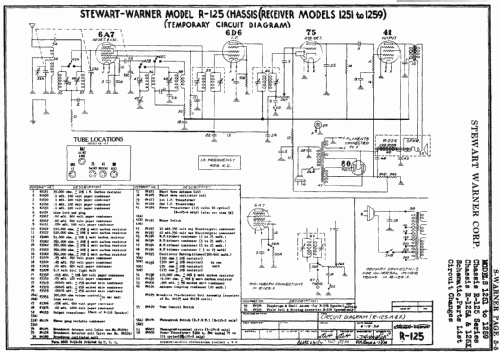

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110, 115, 125, 200, 225, 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1251 Strand Ch= R-125X - Stewart Warner Corp.; Chicago

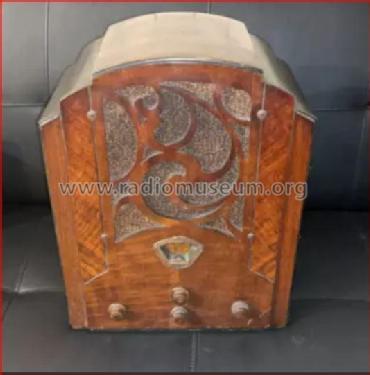

- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Notes

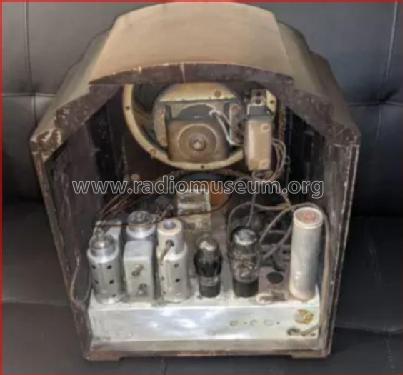

- Model 1251 uses chassis R125X; mains supply 100-240 V (25-133 cycles, phono model / export model).
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 5 = ca. 1934 and before
- Mentioned in

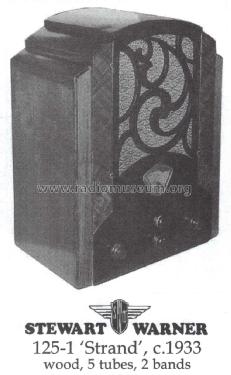

- Table Top Radios Vol. 1 Stein 98 (page 153.)
- Literature/Schematics (1)
- Rider's Perpetual, Volume 6
- Literature/Schematics (2)
- Cathedral & Tombstone Radios (page 258.)
