1284D Ch= R-128D
Stewart Warner Corp.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 137807
-
- Brand: Ferrodyne

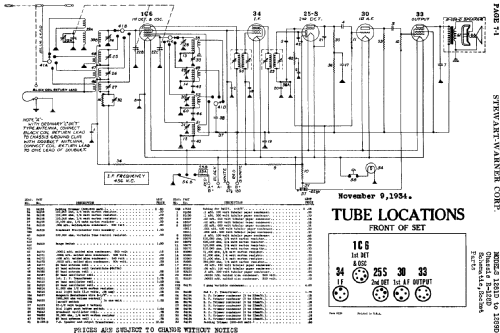

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Storage and/or dry batteries / 2 & 67,5 & 180 & -22,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: 1284D Ch= R-128D - Stewart Warner Corp.; Chicago
- Notes
- Model 1284D uses chassis R128D.
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
