1427 Ch= R-142
Stewart Warner Corp.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 60784
-
- Brand: Ferrodyne
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 1427 Ch= R-142 - Stewart Warner Corp.; Chicago
- Notes
- Model 1427 uses chassis R142; mains supply 115 V (60 cycles) or 115 V (25 cycles).
- External source of data
- Ernst Erb

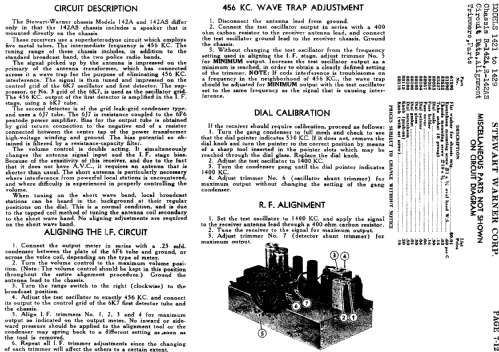

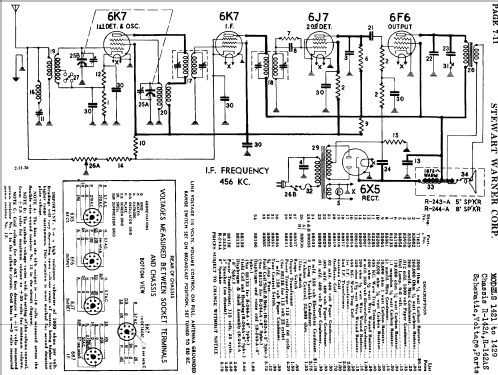

- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
