1451 Ch= R-145X
Stewart Warner Corp.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 310342
-
- Brand: Ferrodyne
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s); Export model
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 25 - 133Hz; 100 - 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
- Material
- Wooden case
- from Radiomuseum.org

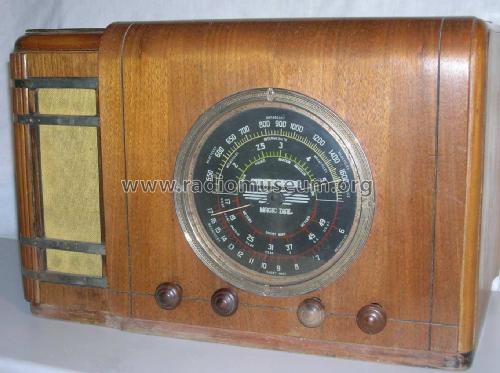

- Model: 1451 Ch= R-145X - Stewart Warner Corp.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 450 x 280 x 240 mm / 17.7 x 11 x 9.4 inch
- Notes
-
This is an export model. See model 1451 (Ch= R-145) for the USA version.
- Mentioned in
- -- Collector info (Sammler)
- Literature/Schematics (1)
- Rider's Perpetual, Volume 7 = 1936 and before
- Author
- Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
