1605 Ch= R-160
Stewart Warner Corp.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1936
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 138437
-
- Brand: Ferrodyne

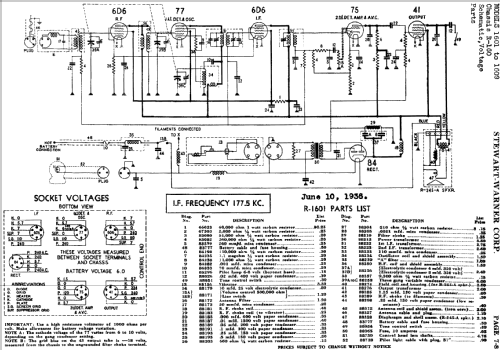

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 177,5 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 1605 Ch= R-160 - Stewart Warner Corp.; Chicago
- Notes
- Model 1605 uses chassis R160; vibrator for +B.
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 01, 1926-1938
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
