• Year
  • 1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 60900
    • Brand: Ferrodyne

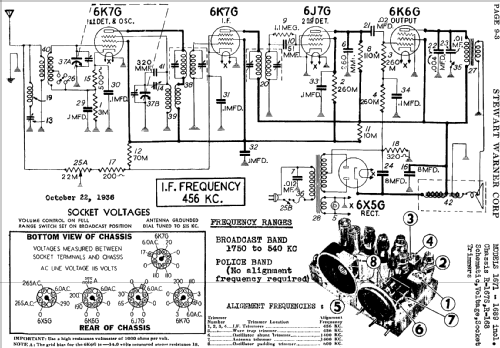

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
  • from Radiomuseum.org
  • Model: 1673 Ch= R-167 - Stewart Warner Corp.; Chicago
  • Notes
  • Model 1673 uses chassis R167; mains supply 115 V (60 cycles), 115 V (25 cycles), 220V (50 cycles, export model) or 105-250 V (50-133 cycles, export model).
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 9 = 1938 and before
