- Country
- Canada
- Manufacturer / Brand
- Stewart Warner; Ontario
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 148886

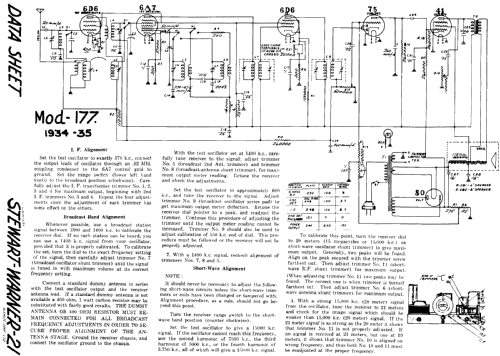

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 370 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: R177 - Stewart Warner; Ontario
- Circuit diagram reference
- Radio College of Canada
- Mentioned in
- RCC Stewart-Warner Sheet 21
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
