- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1947 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 60955
-
- Brand: Ferrodyne

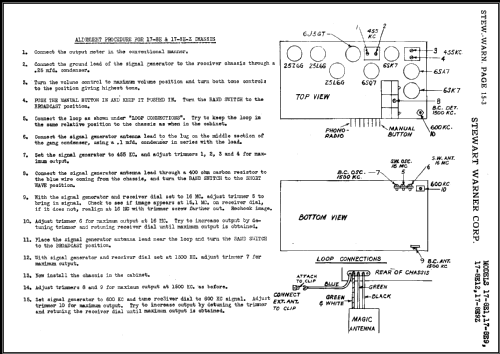

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- from Radiomuseum.org
- Model: 17-8E12 - Stewart Warner Corp.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Notes
- Self Contained Loop Antenna.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Other Models
-
Here you find 2111 models, 395 with images and 1968 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Stewart Warner Corp.; Chicago (IL)
