1802 (R-1802) Ch= R-180

Stewart Warner Corp.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1937/1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 60959
    • Brand: Ferrodyne

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / Either transformer: 50-60 Hz 117V or 25 Hz 117V or 25-133 Hz 100-240V or 50-133 Hz 105-250 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 1802 Ch= R-180 - Stewart Warner Corp.; Chicago
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 17 x 11.5 x 10 inch / 432 x 292 x 254 mm
  • Notes

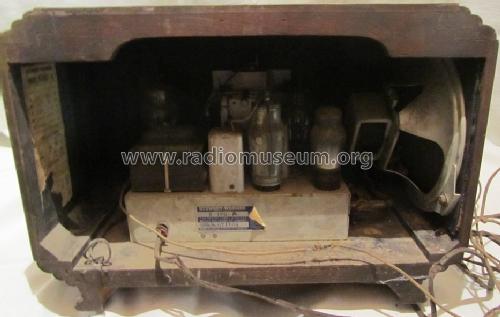

  • The Stewart Warner R-1802 is an AC operated 5 tube BC and Police band receiver.

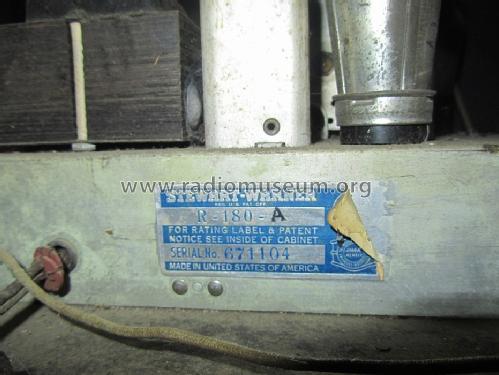

    The power supply rating is appended to the model number on the radio label.

    The power supply ratings are as follows:

    Rating A...........50 to 60 cycles, 117V
    Rating B...........25 cycles, 117V
    Rating P...........25 to 133 cycles, 100 to 240V
    Rating W..........50 to 133 cycles, 105 to 250V
    Rating X.......... 25 to 133 cycles, 100 to 240V (Difference from rating P not known)

    Thus an example full radio model number would look like this: R-1802-A

    Riders refer to these models using the model number "1802", however labels from actual radio models have the prepended "R" and the appended power supply rating.



    .

  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 9 = 1938 and before
  • Literature/Schematics (3)

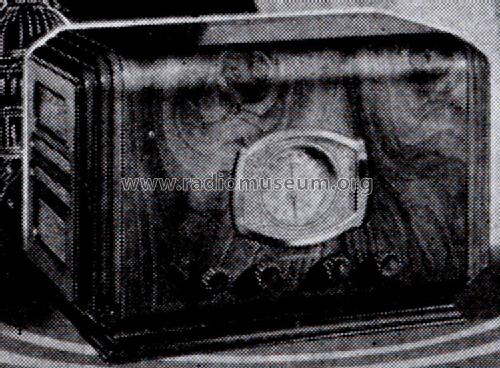

  • -- Original prospect or advert (The Stewart-Warner Folder for 1938.)
