• Country
• United States of America (USA)

• Manufacturer / Brand
• Stewart Warner Corp.; Chicago (IL)

• Year
• 1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 61125

• • Brand: Ferrodyne

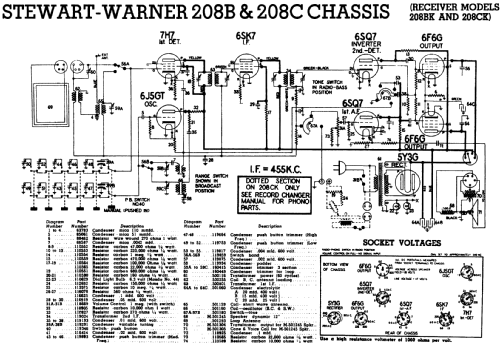

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 7H7 6J5GT 6SK7 6SQ7 6SQ7 6F6G 6F6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 208BK Ch= 208B - Stewart Warner Corp.; Chicago

• Shape
• Console with any shape - in general

• Notes
• Built-in loop antenna; push button tuner; push-pull af output stage.

• External source of data
• Ernst Erb

• Source of data
• Pre-War Consoles

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 05, 1942
