- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1927
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 61225
-
- Brand: Ferrodyne

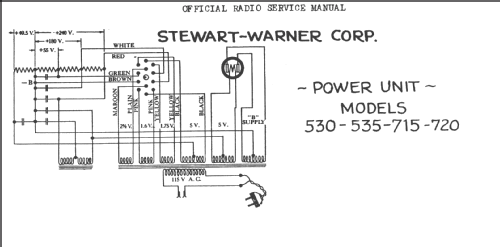

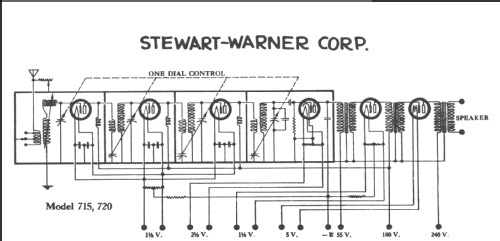

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Valves / Tubes
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Power type and voltage
- Alternating Current supply (AC)
- from Radiomuseum.org
- Model: 715 - Stewart Warner Corp.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Notes
- One dial (primary tuning control knob)
- Price in first year of sale
- 170.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
