• Country
• United States of America (USA)

• Manufacturer / Brand
• Stewart Warner Corp.; Chicago (IL)

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 61247

• • Brand: Ferrodyne

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SK7 6SA7 6SF7 6SK7 6V6GT 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 9001-D - Stewart Warner Corp.; Chicago

• Shape
• Console, Highboy (legs > 50 %).

• Notes
• Self Contained Loop Antenna; Pushbutton Tuning. All-mahogany.

• External source of data
• Ernst Erb

• Circuit diagram reference

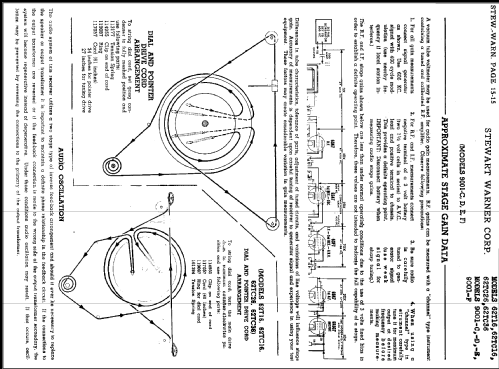

• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• Beitman Radio Diagrams, Vol. 07, 1947

• Literature/Schematics (1)

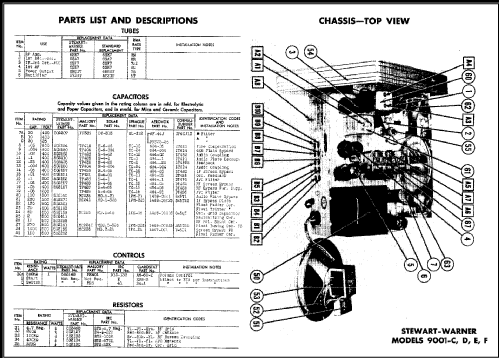

• Photofact Folder, Howard W. SAMS (Dat 11-46, set 8, folder 468-29)

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (November 1946 page 58.)

• Other Models

• Here you find 2122 models, 397 with images and 1979 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
