- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1948 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 61265
-
- Brand: Ferrodyne

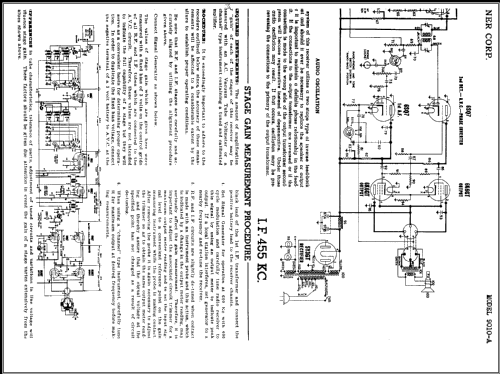

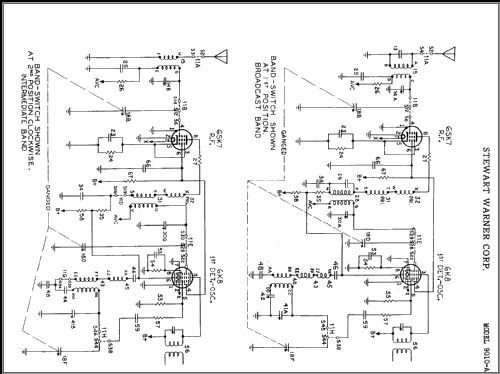

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 200; 225; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- from Radiomuseum.org
- Model: 9010-A - Stewart Warner Corp.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 27 x 14.5 x 12 inch / 686 x 368 x 305 mm
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 16 = ca. 1948 and before
