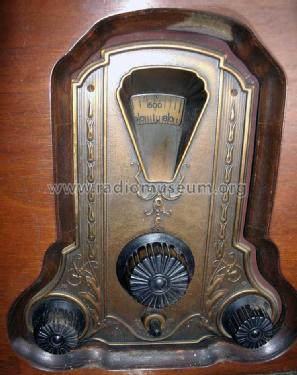

Sheraton 58 highboy 900 Ch= 903 60 Hz

Stewart Warner Corp.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1929
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 117989
    • Brand: Ferrodyne

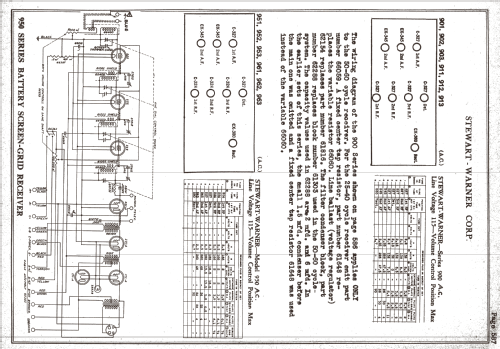

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • TRF without regeneration; Screengrid 1926-1935
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 100 - 125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Sheraton 58 highboy 900 Ch= 903 [60 Hz] - Stewart Warner Corp.; Chicago
  • Shape

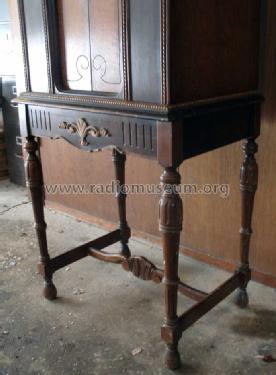

  • Console, Highboy (legs > 50 %).
  • Dimensions (WHD)
  • 25.5 x 52.5 x 17 inch / 648 x 1334 x 432 mm
  • Notes

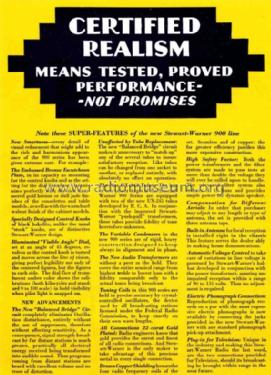

  • Rider's vol.1 Stewart-Warner page 1-7 lists the following models for the same schematic/chassis: 901, 902, 903, 911 (25 cycles), 912 and 913 but there is also a DC version 921 and a battery version 931 plus a model 951 within the series 900. See also magazine "Radio" March 1930 page 41-42 and "Citizens Call Book 11, No. 3 from September 1930, page 74. The ad in Radio Retailing reads for this "Approved Sheraton Cabinet No. 58": "Balanced Bridge" circuit, new Stewart-Warner Electro-Dynamic Reproducer. Cabinets by Louis Hanson Co., Chicago, and Burnham Phonograph Corp., Los Angeles. Walnut and Lacewood with silent sliding doors. Quite special is the fact that the loudspeaker is above the escutcheon on a "High-Boy-Console" (or any console).
  • Price in first year of sale
  • 165.50 $ +
  • Circuit diagram reference
  • Radio College of Canada
