- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1950 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 341807
-
- Brand: Ferrodyne

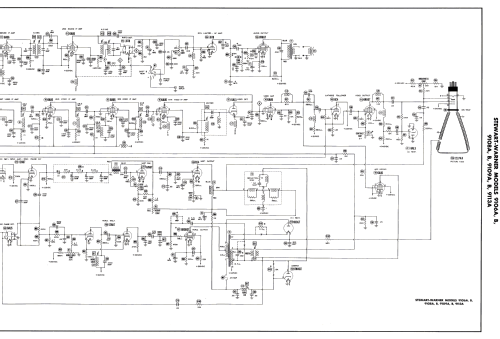

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 26
- Valves / Tubes
- 6AG5 or 6BC5 or 6CB6 6J6 6AU6 6AU6 6AU6 6AU6 6AL5 6AU6 6AU6 6C4 6K6GT 6AU6 6AU6 6T8 6V6GT 12AU7 6J5GT 6S4 6AL5 12AU7 6BQ6GT 6W4GT 1B3GT 5U4G 6X5GT 12LP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 9106B - Stewart Warner Corp.; Chicago
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Stewart-Warner model 9106B is a 12” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with a VHF- tuner and picture tube 12LP4A.
- Literature/Schematics (1)

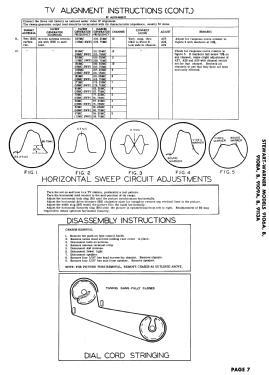

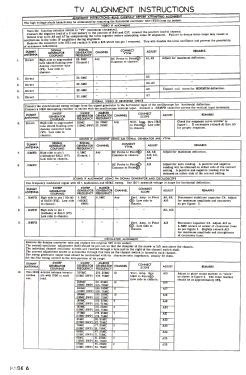

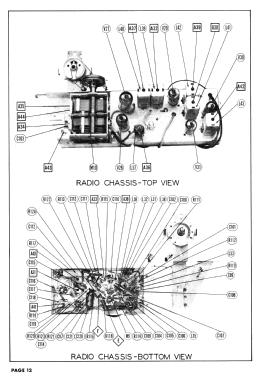

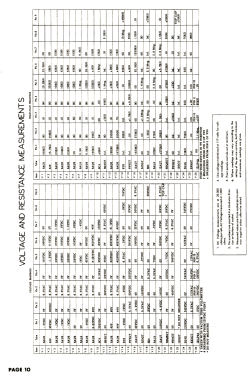

- Photofact Folder, Howard W. SAMS (Set 118, Folder 10 dated 12-50)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
