- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1950 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 341812
-
- Brand: Ferrodyne

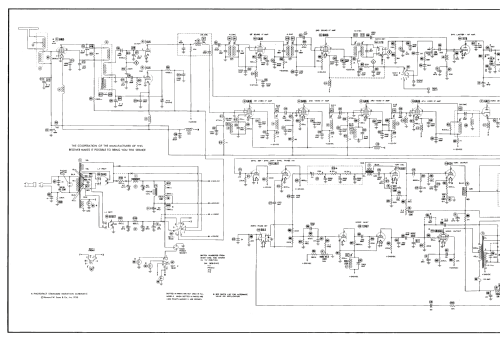

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 31
- Valves / Tubes
- 6AG5 or 6BC5 or 6CB6 6J6 6AU6 6AU6 6AU6 6AU6 6AL5 6AU6 6AU6 6C4 6K6GT 6AU6 6AU6 6T8 6V6GT 12AU7 6J5GT 6S4 6AL5 12AU7 6BQ6GT 6W4GT 1B3GT 5U4G 6X5GT 12AT7 6BE6 6BA6 6BA6 6AL5 12LP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 9113A - Stewart Warner Corp.; Chicago
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Stewart-Warner model 9113A is a 12” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with a VHF- tuner, an AM-FM receiver and picture tube 12LP4A.
- Literature/Schematics (1)

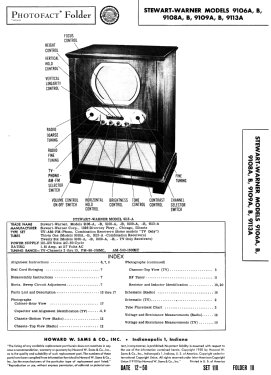

- Photofact Folder, Howard W. SAMS (Set 118, Folder 10 dated 12-50)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
