- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1950 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 341931
-
- Brand: Ferrodyne

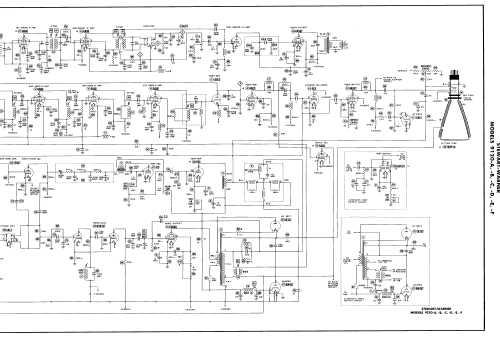

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 26
- Valves / Tubes
- 6CB6 or 6BC5 or 6AG5 6J6 6AU6 6AU6 6AU6 6AU6 6AL5 6AG5 or 6AU6 6AG5 or 6AU6 6C4 6K6GT 6BH6 or 6AU6 6AU6 or 6BH6 6T8 6V6GT 12AU7 6J5 6S4 or 6SN7GT 6AL5 6SN7GT 6CD6G 6W4GT 1B3GT 6X5GT 5U4G 16RP4A or 16RP4 or 16TP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 9120-F - Stewart Warner Corp.; Chicago
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Stewart-Warner model 9120-F is a 16” b/w TV with US standard VHF tuner channels 2 thru 13.Equipped with VHF- tuner 508890 and picture tube 16RP4A or 16TP4 or 16RP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 119, Folder 1A dated 1-51)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 137, folder 11, dated 7-51)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
- Other Models
-
Here you find 2111 models, 395 with images and 1968 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Stewart Warner Corp.; Chicago (IL)
