- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1952 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 136763
-
- Brand: Ferrodyne

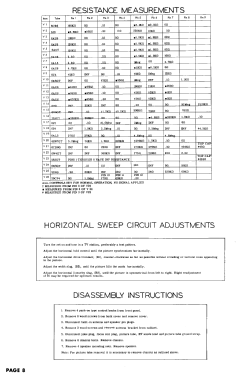

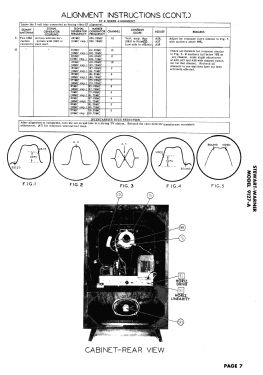

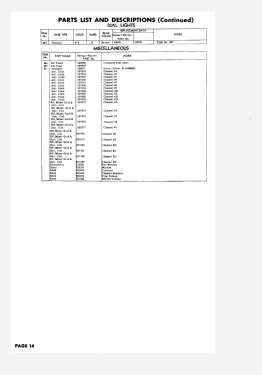

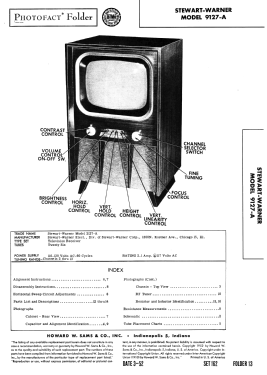

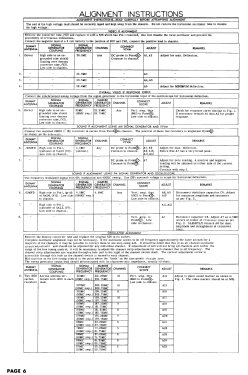

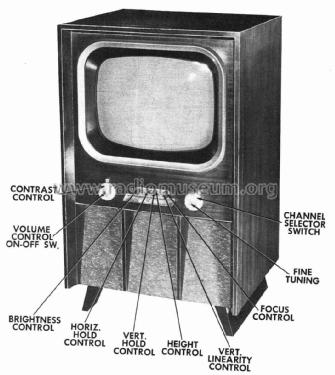

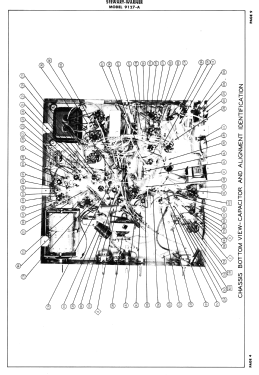

Picture from service manual.

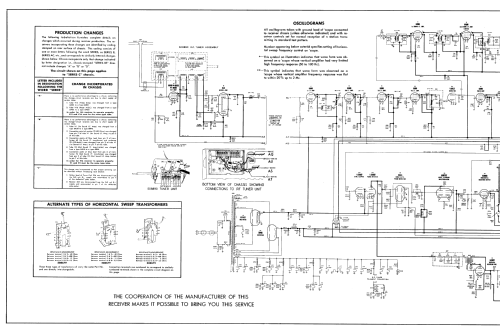

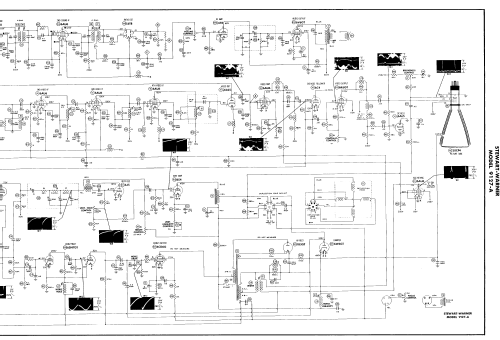

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 26
- Valves / Tubes
- 6CB6 or 6AG5 or 6BC5 6J6 6AU6 6AU6 6AU6 6AU6 6AL5 6AU6 6C4 6K6GT 6AU6 6AU6 6AU6 6T8 6V6GT 12AU7 6J5 6S4 6AL5 6SN7GT 6CD6G 6W4GT 1B3GT 6X5GT 5U4G 20CP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 9127-A - Stewart Warner Corp.; Chicago
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 25 x 43 x 22 inch / 635 x 1092 x 559 mm
- Notes
-
Stewart-Warner model 9127-A is a 20” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner 508890 and picture tube 20CP4.
- Source of data
- -- Collector info (Sammler)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 155, folder 1A, dated 1951)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 162, folder 13, dated 3-52)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
- Other Models
-
Here you find 2115 models, 396 with images and 1972 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Stewart Warner Corp.; Chicago (IL)
