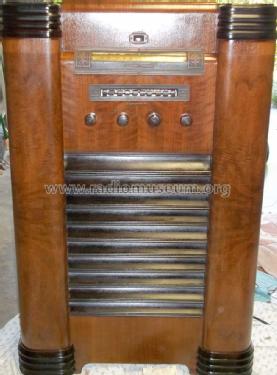

91-111 series chassis
Stewart Warner Corp.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1938 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 139146
-
- Brand: Ferrodyne
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: 91-111 series chassis - Stewart Warner Corp.; Chicago
- Shape
- Chassis only or for «building in»
- Notes
- Chassis 91-111 is employed in several models; mains supply 117 V (60 cycles); automatic push button tuner with remote control; tuning eye; push-pull af output stage.
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 02, 1939
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
