953 AC Phono Combination
Stewart Warner Corp.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1930
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 111208
-
- Brand: Ferrodyne

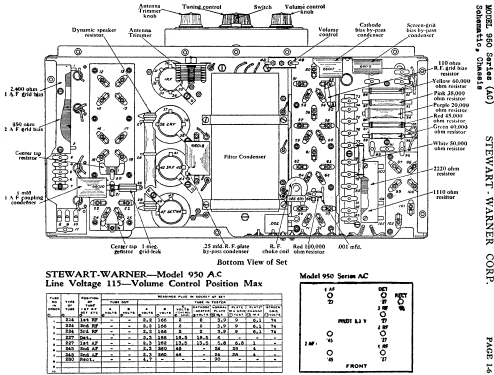

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); Screengrid 1926-1935
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org
- Model: 953 AC Phono Combination - Stewart Warner Corp.; Chicago
- Shape
- Console with any shape - in general
- Notes
- Uses 953 draw type chassis from the 950 series. One dial (primary tuning control knob) . Grinder notes a DC version too.
- Circuit diagram reference
- Radio College of Canada
- Literature/Schematics (1)
- Rider's Perpetual, Volume 1 = 1931/1934 (1919 to 1931)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
