953 AC draw type chassis
Stewart Warner Corp.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1929
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 111206
-
- Brand: Ferrodyne

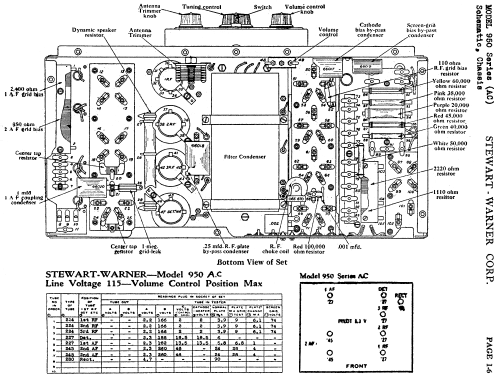

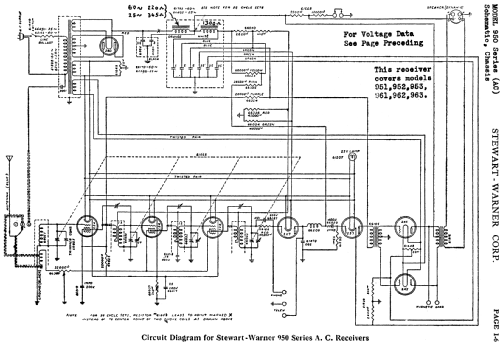

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); Screengrid 1926-1935
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 9 inch = 22.9 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: 953 AC draw type chassis - Stewart Warner Corp.; Chicago
- Shape
- Chassis only or for «building in»
- Notes
- One dial (primary tuning control knob) Used in Models 951, 952, 961, 962.
- Net weight (2.2 lb = 1 kg)
- 28.7 kg / 63 lb 3.5 oz (63.216 lb)
- Circuit diagram reference
- Radio College of Canada
- Literature/Schematics (1)
- Rider's Perpetual, Volume 1 = 1931/1934 (1919 to 1931)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
