98-817 Ch= 98-81
Stewart Warner Corp.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 61632
-
- Brand: Ferrodyne

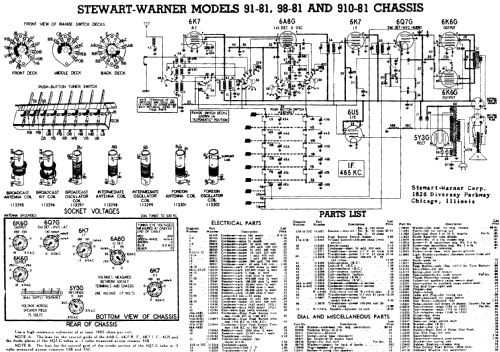

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- from Radiomuseum.org
- Model: 98-817 Ch= 98-81 - Stewart Warner Corp.; Chicago
- Notes
- Model 98-817 uses chassis 98-81; mains supply 117 V (25 cycles); push button tuner; tuning eye; push-pull af output stage.
