• Country
• United States of America (USA)

• Manufacturer / Brand
• Stewart Warner Corp.; Chicago (IL)

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 61662

• • Brand: Ferrodyne

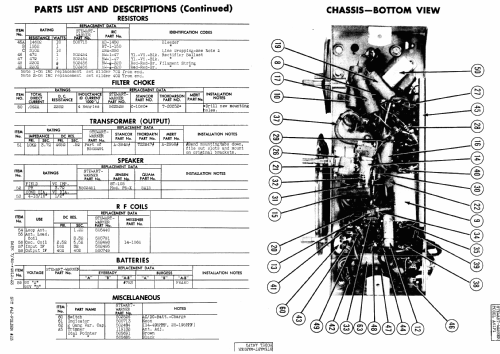

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 1A7GT 1N5GT 1H5GT 3Q5GT 35Z5GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / AC/DC 110-120/ 90 & 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• from Radiomuseum.org
• Model: A61P2 Ch= 9036-B - Stewart Warner Corp.; Chicago

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Battery Pack, Eveready 753, Ray-O-Vac 994, Burgess F6A60, General 60A-6F6-5
  Photofact Folders, Sams; Set 42, Folder 23.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 17 = 1948 and before

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 09, 1949

• Literature/Schematics (4)
• Photofact Folder, Howard W. SAMS (Set 42, Date 7/48, Folder 4812-23)
