B92CR1 Ch= 9043A
Stewart Warner Corp.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1949 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 61686
-
- Brand: Ferrodyne
SAMS Photofact Volume 7 4913-14

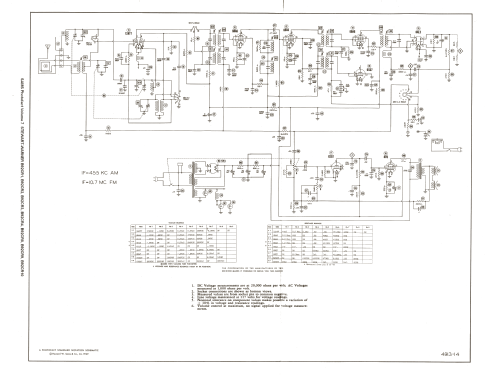

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: B92CR1 Ch= 9043A - Stewart Warner Corp.; Chicago
- Shape
- Console, Lowboy (legs < 50 %).
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 19 = 1949 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)

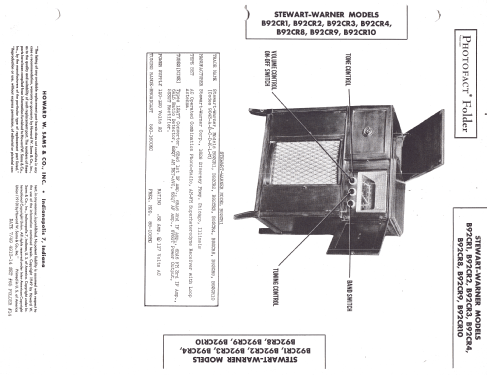

- Photofact Folder, Howard W. SAMS (Rider's Perpetual, Volume 21 Changes 10)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set #65 Folder #14 dated 7-49)
