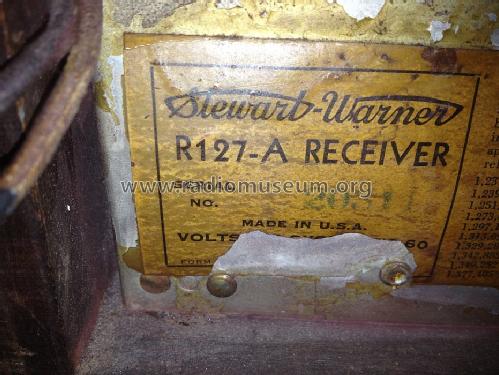

R-127A or R-127X chassis
Stewart Warner Corp.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1933/1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 60680
-
- Brand: Ferrodyne
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: R-127A or R-127X chassis - Stewart Warner Corp.; Chicago
- Shape
- Chassis only or for «building in»
- Notes
- Chassis R127 is available in 2 versions ;
R127A = 115 V (60 cycles)
R127X = 100-240 V (25-133 cycles, phono model / export model).
It is employed in the models 1271 to 1279.
- External source of data
- Ernst Erb
- Literature/Schematics (1)

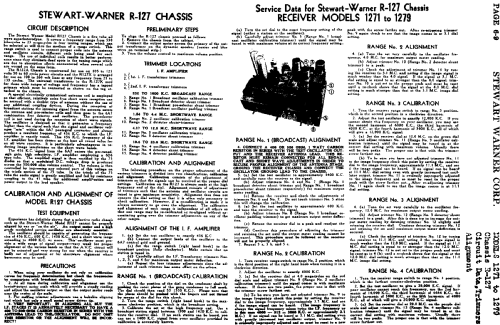

- Rider's Perpetual, Volume 6 = 1935 and before (Stewart Warner 6-10)
- Literature/Schematics (2)
- Rider's Perpetual, Volume 5 = ca. 1934 and before (Stewart Warner 5-14)
