• Country
• Canada

• Manufacturer / Brand
• Stewart Warner; Ontario

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 147480

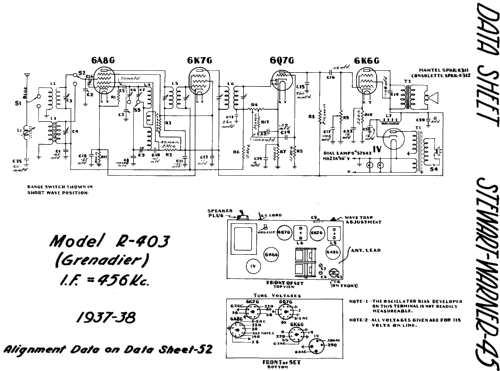

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8G 6K7G 6Q7G 6K6G 1-V

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Grenadier R-403 - Stewart Warner; Ontario

• Dimensions (WHD)
• 18 x 10.25 x 9 inch / 457 x 260 x 229 mm

• Notes

• Specified for 25/60 Hz AC operation, 38 watts.

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• RCC Stewart-Warner Sheet 45, 52

• Author
• Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
