• Country
• Canada

• Manufacturer / Brand
• Stewart Warner; Ontario

• Year
• 1936/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 148993

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6A8G 6P7 6F6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

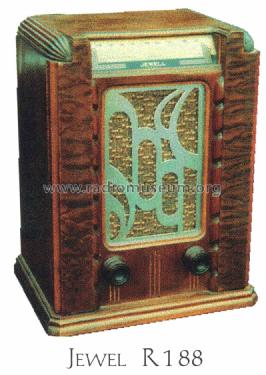

• Model: Jewel Ch= R-188 - Stewart Warner; Ontario

• Notes

• Stein "Cathedral & Tombstone Radios" lists 5 tubes for this model. During 1935 there was no 6A8G, but the metal tube 6A8. The schematic may show the later model.

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• RCC Stewart-Warner Sheet 31

• Literature/Schematics (1)
• Machine Age to Jet Age II

• Literature/Schematics (2)
• Cathedral & Tombstone Radios (page 144.)

• Author
• Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
