• Country
• United States of America (USA)

• Manufacturer / Brand
• Stewart Warner Corp.; Chicago (IL)

• Year
• 1932/1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 61733

• • Brand: Ferrodyne

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 24 27 51 or 35 24 PZ or 47 80

• Main principle
• Superheterodyne (common); ZF/IF 177,5 kHz; Screengrid 1926-1935

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: R-102-A chassis - Stewart Warner Corp.; Chicago

• Notes
• R102 A is for 115 V, 60 cycles
  R102 B is for 115 V, 25 cycles
  R102 E is for 220 V, 50 cycles (Export)

• External source of data
• Ernst Erb

• Circuit diagram reference

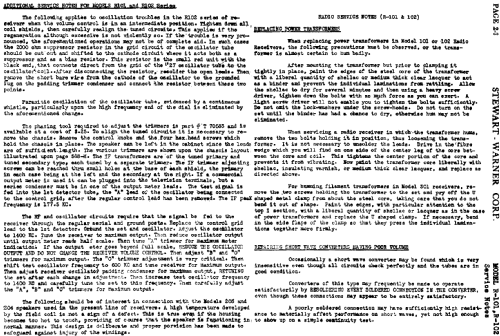

• Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 01, 1926-1938
