• Country
• United States of America (USA)

• Manufacturer / Brand
• Stewart Warner Corp.; Chicago (IL)

• Year
• 1933 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 61736

• • Brand: Ferrodyne

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 78 37 78 6B7 43 25Z5

• Main principle
• ZF/IF 456 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110-120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: Century of progress 1111 Ch= R-111 - Stewart Warner Corp.; Chicago

• Notes

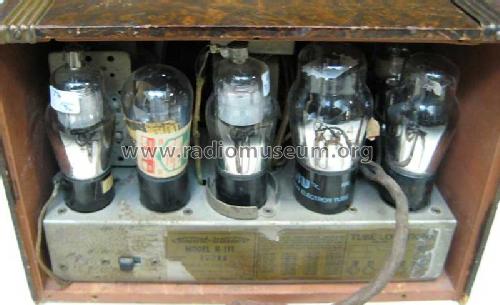

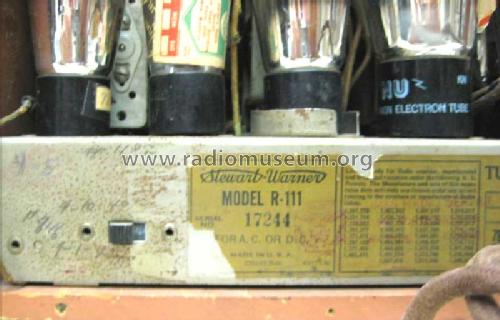

• Model 1111 uses chassis R111.

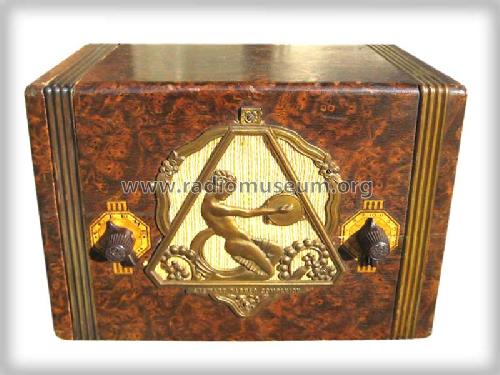

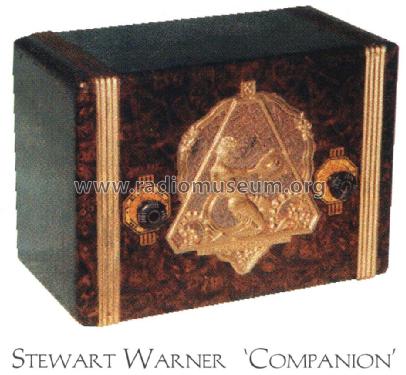

  Wood with metal grille. Faux burle with gold or green with silver.

• External source of data
• Ernst Erb

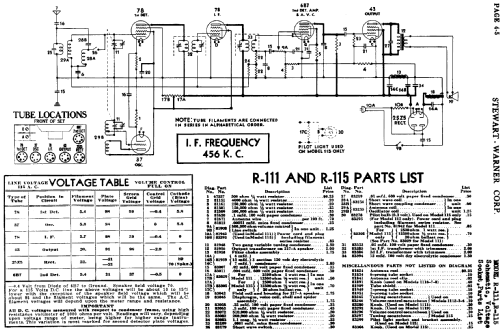

• Circuit diagram reference
• Rider's Perpetual, Volume 4 = ca. 1934 and before

• Mentioned in
• Machine Age to Jet Age II

• Literature/Schematics (1)
• Table Top Radios Vol. 1 Stein 98 (page 152.)
