R-119 series chassis

Stewart Warner Corp.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1933 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 61741
    • Brand: Ferrodyne

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 177,5 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: R-119 series chassis - Stewart Warner Corp.; Chicago
  • Shape
  • Chassis only or for «building in»
  • Notes
  • Chassis R119 can only be from 1933 or 1934 because the tube 6A7 was released in 1933 (eraliest date) and Rider's volume 4 is copyrighted 1934 (latest date). The R119 chassis is employed in several models; mains supply 115 V (60 cycles) or 115-230 V (25-60 cycles, export model).
  • External source of data
  • Ernst Erb

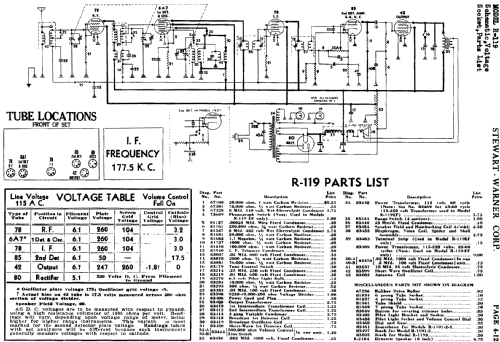

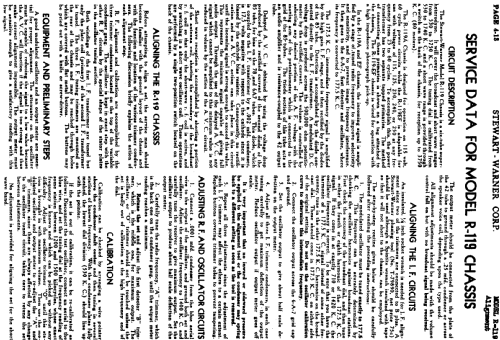

  • Circuit diagram reference
  • Rider's Perpetual, Volume 4 = ca. 1934 and before
